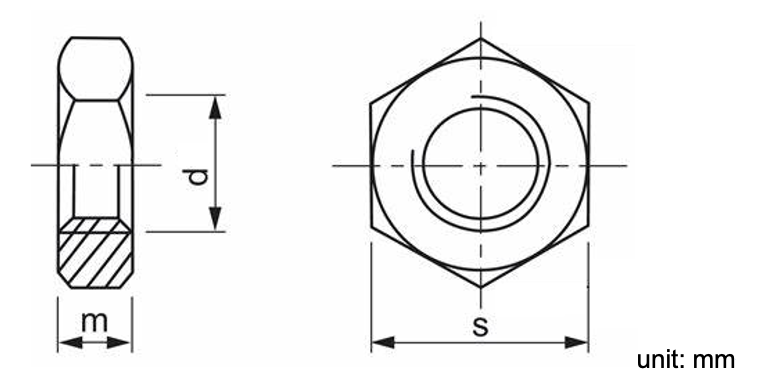

六角薄型螺帽(DIN439)
|
d |
P |
S |
m |
|||
|
MIN |
MAX |
MIN |
MAX |
|||
|
M2 |
0.4 |
3.70 |
4.00 |
0.80 |
1.20 |
|
|
M2.5 |
0.45 |
4.82 |
5.00 |
1.35 |
1.60 |
|
|
M3 |
0.5 |
5.32 |
5.50 |
1.55 |
1.80 |
|
|
M3.5 |
0.6 |
5.82 |
6.00 |
1.75 |
2.00 |
|
|
M4 |
0.7 |
6.78 |
7.00 |
1.95 |
2.20 |
|
|
M5 |
0.8 |
7.78 |
8.00 |
2.45 |
2.70 |
|
|
M6 |
1.0 |
9.78 |
10.00 |
2.90 |
3.20 |
|
|
M8 |
1.25 |
12.73 |
13.00 |
3.70 |
4.00 |
|
