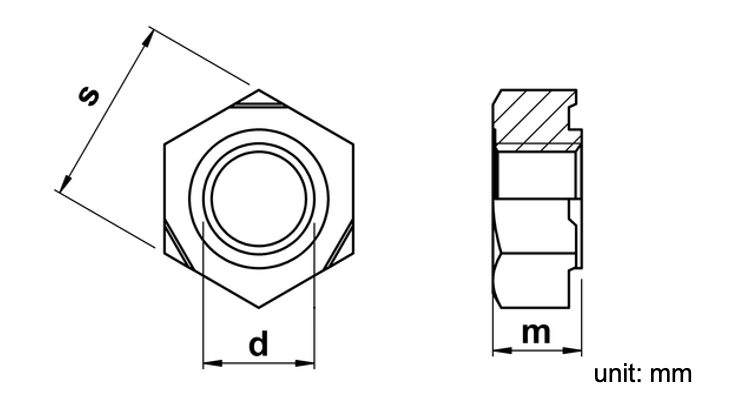

六角焊接螺帽(DIN 929)
|
d |
P |
s |
m |
|||
|
MIN |
MAX |
MIN |
MAX |
|||
|
M3 |
0.5 |
7.28 |
7.50 |
2.75 |
3.00 |
|
|
M4 |
0.7 |
8.78 |
9.00 |
3.20 |
3.50 |
|
|
M5 |
0.8 |
9.78 |
10.00 |
3.70 |
4.00 |
|
|
M6 |
1.0 |
10.73 |
11.00 |
4.70 |
5.00 |
|
|
M8 |
1.25 |
13.73 |
14.00 |
6.14 |
6.50 |
|
